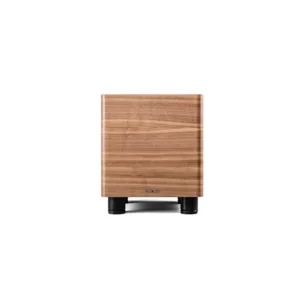

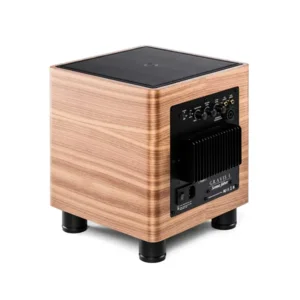

Sonus Faber Gravis I

The Gravis I powered subwoofer offers an ideal balance of size and performance for smaller listening spaces.

Gravis I, the most compact powered subwoofer in the Gravis collection, effortlessly harmonizes with diverse listening environments and audio systems. Gravis I seamlessly complements the aesthetics and acoustic characteristics of the Sonus faber Lumina collection and the smaller Sonetto bookshelf models, such as Sonetto I & II.
Custom-designed drivers and amplifiers integrate seamlessly within Gravis I, delivering powerful depth with more efficient power consumption.

Gravis melds decades of Sonus faber design and audio expertise into a contemporary package, enhancing the depth and clarity of our Natural Sound signature in a seamlessly integrated design.

The independent volume controls for high-level and line/LFE offer effortless calibration for both music and home theater applications, eliminating the need for constant adjustments. The High-Level Connection ensures a seamless fusion with main speakers during music playback, while the LFE input enhances the immersive home theater experience.

Tech Specs:

System
Closed box loading, down firing active subwoofer

Loudspeakers
Sw: Ø 210 mm, very long throw, treated paper cone,
wide rubber surround woofer

Frequency response
@ - 6dB, from 30 Hz to Fc (user adjustable)

On board amplifiers
High linearity Class AB
150 W rms, 250 W (peak)

Power consumption
0.5 W (Stand-by)
200 W (Rated power)

Audio Input / Output
LFE (Low Frequency Effect) - mono RCA plug; LINE - mono RCA plug; HIGH LEVEL - Neutrik 4-pole Speakon©

Mains Input Voltage
Factory selected, 120 Vac – 60 Hz or 230 Vac - 50 Hz

Decoupling Systems
Rubber pad

Product dimensions (HxWxD)
334 x 286 x 316 mm / unit
13,1 x 11,2 x 12,4 in / unit

Dimensions with packaging (HxWxD)
447 x 437 x 418 mm / unit
17.6 x 17.2 x 16.5 in / unit

Weight
14 Kg / unit
30.9 lb / unit

Packaging weight
17,6 Kg / unit
38.8 lb / unit

Cabinet
Squared shape

Oper pore/ matte/ high gloss wood

Black leather

Fuse
Factory selected
T4.0A (110 Vac, 60 Hz); T2.0A (230 Vac, 50 Hz)

Controls
Independent Master and LFE volume controls
Continuously adjustable Crossover frequency (30 to 120
Hz), slope 24 dB / oct
Signal phase inversion switch (0/180°)
Auto switch - on / off (deselectable)
