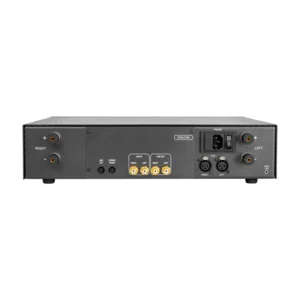

Atoll AM300 EVO Zwart

The AM300 EVO power block has been specially designed to meet demanding amplification needs, offering improved audio performance and remarkable thermal protection. It has new RCA connectors. In addition, it can be bridged to a mono block via an external switch and is equipped as standard with a 12V Trigger input (direct ignition in connection with a preamp).

8 mm brushed, micro-blasted, and anodised aluminium front panel with high-precision engraving.
2 mm steel chassis.
Two 440 VA toroidal transformers + one 5 VA (control logic).
High-quality, shielded MKP coupling capacitors.
Custom-made printed circuit board with nickel/gold finish.
Purely balanced XLR signal processing.
Bipolar transistor and LED current sources ensure perfect voltage stability.
Reworked audio stages to make the device immune to capacitive loads.
Improved signal-to-noise ratio.
Thermal protection.
High-quality RCA input/output connectors, screwed to the chassis.
Tellurium copper speaker outputs.
12V Trigger input.

CONNECTIVITY

Audio inputs
1 Right line input.
1 Left line input.
1 Right XLR input.
1 Left XLR input.

Audio outputs
1 Right Speaker output.
1 Left Speaker output.
1 Right line output.
1 Left line output.

Various
1 Input Type Selector:
– Line: button up.
– XLR: button down.
1 MONO Bridge Switch.
1 12V Trigger input.

TECHNICAL DATA

Power Wrms/channel/8Ω: 150 W
Power Wrms/channel/4Ω: 280 W
Power in bridged mono mode/8Ω: 500 W
Power supply: 2 x 440 VA
Total capacitance: 83 600 μF
Number of stereo inputs: 1 RCA + 1 XLR
Power consumption with switch off: 0 W
Power consumption in operation: 26 W – 700 W
Input impedance: 220 kΩ
Sensitivity: 1,7 V
Signal-to-noise ratio: 105 dB
Distortion at 1 kHz: 0,005%
Bandwidth: 5 Hz – 200 kHz
Rise time: 1,5 μs
Dimensions: 440 x 351 x 103 mm
Weight: 16 kg
