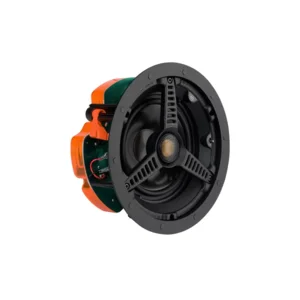

Monitor Audio Core C165

Incorporating a 6 1/2 inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.

Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

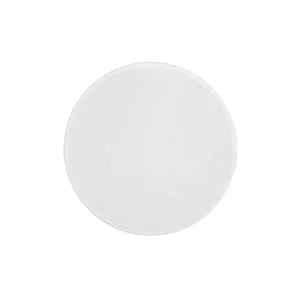

Optional square or premium grille can be used with this model.

Frequency Response
60 Hz – 25 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
88.5 dB

Maximum SPL
107.4 dBA

Power Handling (RMS)
65 W

Recommended Amplifier Requirements
20 – 65 W

Drive Unit Complement
6 1/2" MMP II cone bass driver
1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)

Overall Diameter (Including Grille)
250 mm (913/16")

Overall Depth (Including Grille)
120 mm (43/4")

Mounting Depth
116 mm (49/16")

Cut-Out Hole Diameter
211 mm (81/4")

Optional Square Grille - Outer Dimensions
249 x 249 mm (9 3/16")

Fixing Type
3 position Tri-Grip dog fixings

Construction Material
Mineral filled ABS, RoHS compliant

Weight
1.92 kg (4 lb 4 oz)

Pre-Construction Bracket
CB6 Pre-Construction Bracket (Purple)

Back Box
CCBOX-R / CMBOX-R
