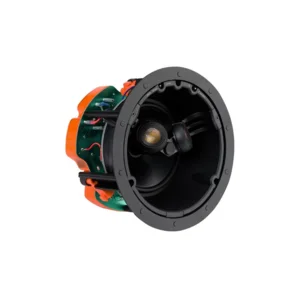

Monitor Audio Core C265-FX

Features surround mode selection of dipole (diffuse sound) or bipole (direct sound) operation for super-discreet home theatre sound.

Incorporates a 6 1/2 inch C-CAM bass driver and dual 1-inch C-CAM Gold Dome tweeters mounted at a precise fixed-angle for optimised performance.

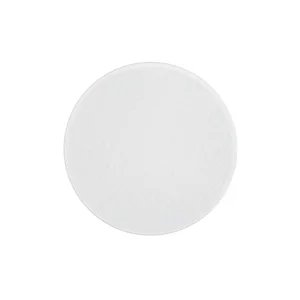

Optional square or premium grille can be used with this model.

Frequency Response
60 Hz – 30 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
88.5 dB

Maximum SPL
108 dBA

Power Handling (RMS)
85 W

Recommended Amplifier Requirements
20 – 85 W

Drive Unit Complement
6 1/2" C-CAM cone bass driver
2 x 1” C-CAM fixed angle Gold Dome tweeters

Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Bipole / Dipole Switch

Overall Diameter (Including Grille)
250 mm (913/16")

Overall Depth (Including Grille)
154 mm (61/16")

Mounting Depth
150 mm (57/8")

Cut-Out Hole Diameter
211 mm (81/4")

Optional Square Grille - Outer Dimensions
249 x 249 mm (9 3/16")

Fixing Type
3 position Tri-Grip dog fixings

Construction Material
Mineral filled ABS, RoHS compliant

Weight
2.08 kg (4 lb 10 oz)

Pre-Construction Bracket
CB6 Pre-Construction Bracket (Purple)

Back Box
CCBOX-L / CMBOX-R
