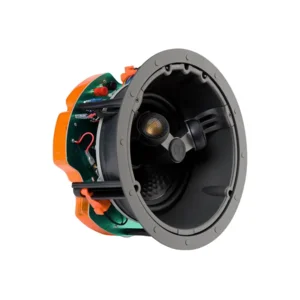

Monitor Audio Core C380-FX

Features surround mode selection of dipole (diffuse sound) or bipole (direct sound) operation for super-discreet home theatre sound.

Incorporates an 8-inch C-CAM RST bass driver 8-inch C-CAM bass driver and dual 1-inch C-CAM Gold Dome tweeters mounted at a precise fixed-angle for optimised performance.

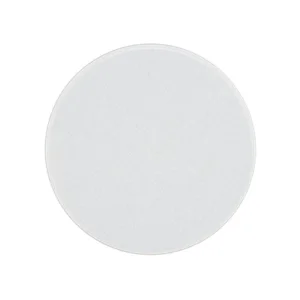

Optional square grille can be used with this model.

Frequency Response
45 Hz – 30 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
90 dB

Maximum SPL
111.6 dBA

Power Handling (RMS)
120 W

Recommended Amplifier Requirements
30 – 120 W

Drive Unit Complement
8" C-CAM cone bass driver featuring RST
2 x 1" C-CAM fixed angle Gold Dome tweeters

Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)
Bipole / Dipole Switch with Additional 12v Trigger Switching

Overall Diameter (Including Grille)
285 mm (111/4")

Overall Depth (Including Grille)
161 mm (65/16")

Mounting Depth
157 mm (63/16")

Cut-Out Hole Diameter
247 mm (93/4")

Optional Square Grille - Outer Dimensions
285 x 285 mm (111/4")

Fixing Type
3 position Tri-Grip dog fixings

Construction Material
Mineral filled ABS, RoHS compliant

Weight
3.2 kg (7 lb)

Pre-Construction Bracket
CB8 Pre-Construction Bracket (Green)

Back Box
CMBOX-R
