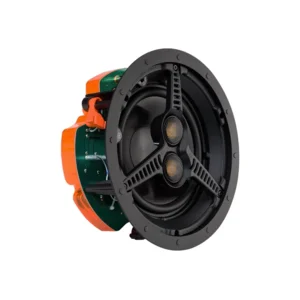

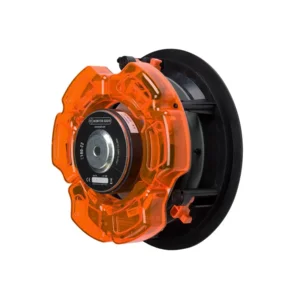

Monitor Audio Core C180-T2

Features dual, independent, pivoting 1-inch C-CAM tweeters and an 8-inch MMP II dual wound voice coil bass driver, for high performance stereo sound from a single speaker.

Ideal for hallways, or any area where space does not allow for stereo pairs.

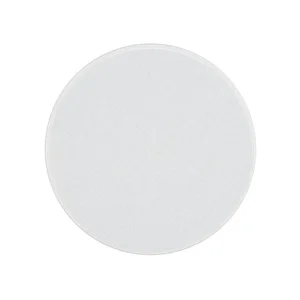

Optional square grille can be used with this model.

Frequency Response
50 Hz – 25 kHz

Nominal Impedance
6 + 6 ohms

Sensitivity (1W@1M)
90 dB

Maximum SPL
111.6 dBA

Power Handling (RMS)
120 W

Recommended Amplifier Requirements
30 – 120 W

Drive Unit Complement
8" MMP II cone bass driver
2 x 1" C-CAM pivoting Gold Dome tweeters

Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)

Overall Diameter (Including Grille)
285 mm (111/4")

Overall Depth (Including Grille)
126 mm (415/16")

Mounting Depth
122 mm (413/16")

Cut-Out Hole Diameter
247 mm (93/4")

Fixing Type
3 position Tri-Grip dog fixings

Optional Square Grille - Outer Dimensions
285 x 285 mm (111/4")

Construction Material
Mineral filled ABS, RoHS compliant

Weight
3 kg (6 lb 10 oz)

Pre-Construction Bracket
CB8 Pre-Construction Bracket (Green)

Back Box
CCBOX-R / CMBOX-R
