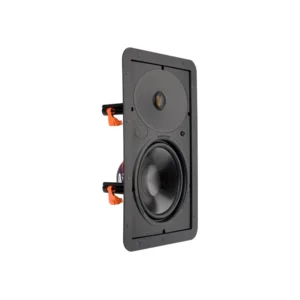

Monitor Audio Core W180

Incorporating an 8-inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.

Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

Frequency Response
50 Hz – 25 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
90 dB

Maximum SPL
111.6 dBA

Power Handling (RMS)
120 W

Recommended Amplifier Requirements
30 – 120 W

Drive Unit Complement
8" MMP II cone bass driver
1" C-CAM Gold Dome tweeter

Adjustment Controls
HF Level Switch (+3 dB / 0 dB / -3 dB)

Overall Diameter (Including Grille)
441 x 288 mm (173/8 x 115/16")

Overall Depth (Including Grille)
104 mm (41/8")

Mounting Depth
100 mm (315/16")

Cut-Out Hole Diameter
387 x 234 mm (151/4" x 93/16")

Fixing Type
6 position Tri-Grip dog fixings

Construction Material
Mineral filled ABS, RoHS compliant

Weight
3.08 kg (6 lb 12 oz)

Pre-Construction Bracket
WB8 Pre-Construction Bracket (Green)

Back Box
WCBOX-L

Sold As
Single Unit
