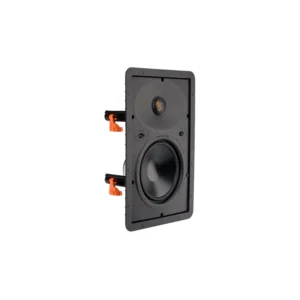

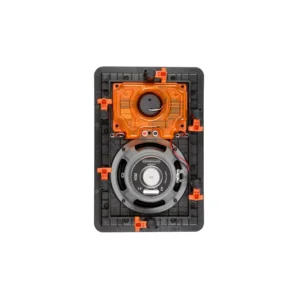

Monitor Audio Core W265

A 6 1/2 inch C-CAM bass driver and a more highly specified version of the C-CAM Gold Dome tweeter offer an extended high-frequency response to 30 kHz, as well as higher output and power handling capacity.

Optimum imaging and set-up are established via a pivoting tweeter, high frequency (+3 dB / 0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.

Frequency Response
55 Hz – 30 kHz

Nominal Impedance
6 ohms

Sensitivity (1W@1M)
88.5 dB

Maximum SPL
107.4 dBA

Power Handling (RMS)
65 W

Recommended Amplifier Requirements
20 – 65 W

Drive Unit Complement
6 1/2" C-CAM cone bass driver
1" C-CAM pivoting Gold Dome tweeter

Adjustment Controls
HF Level Switch (+3dB / 0dB / -3dB)
Boundary Compensation Switch

Overall Diameter (Including Grille)
370 x 250 mm (149/16 x 913/16")

Overall Depth (Including Grille)
96 mm (33/4")

Mounting Depth
92 mm (35/8")

Cut-Out Hole Diameter
332 x 213 mm (131/16" x 83/8")

Fixing Type
6 position Tri-Grip dog fixings

Construction Material
Mineral filled ABS, RoHS compliant

Weight
2.26 kg (5 lb)

Pre-Construction Bracket
WB6 Pre-Construction Bracket (Purple)

Sold As
Single Unit
