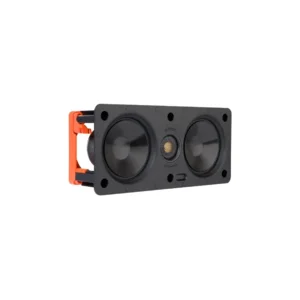

Monitor Audio Core W150-LCR

The 2-way W150-LCR in-wall model with 5-inch drivers features Monitor Audio's MMP II cones coupled with a pivoting version of our C-CAM Gold Dome tweeter.

These in-wall models can be used vertically or horizontally: the ideal aspect for centre-channel applications in discreet home theatre systems.

Frequency Response
60 Hz – 30 kHz

Nominal Impedance
8 ohms

Sensitivity (1W@1M)
88 dB

Maximum SPL
108 dBA

Power Handling (RMS)
100 W

Recommended Amplifier Requirements
30 – 100 W

Drive Unit Complement
2 x 5" MMP II cone bass driver
1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter

Adjustment Controls
N/A

Overall Dimensions (Including Grille (H x W x D))
177.4 x 385.2 mm (7 x 153/16")

Overall Depth (Including Grille)
105 mm (41/8")

Mounting Depth
100.2 mm (315/16")

Cut-Out Dimensions
145 x 353 mm (53/4" x 137/8")
Required Clearance for Doglegs in Centre Configuration 400 x 197mm (153/4" x 73/4")

Fixing Type
Tri-Grip dog fixings

Construction Material
Mineral filled ABS, RoHS compliant

Weight
3.76 kg (8.3 lb)

Pre-Construction Bracket
WB5LCR Pre-Construction Bracket (Yellow)

Sold As
Single Unit
