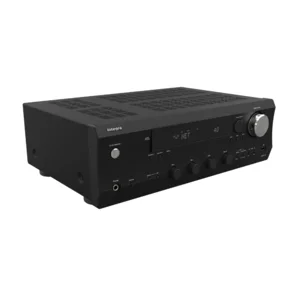

Integra DTM 7.4

Designed and engineered with meticulous attention to detail, the Integra DTM-7.4 Hi-Fi Network Stereo Receiver offers audiophile-grade sound alongside cutting-edge connectivity options and a full suite of custom installation features.

With HDMI ARC technology and support for 8K visual content, the Integra DTM-7.4 Hi-Fi Network Stereo Receiver seamlessly integrates into any home entertainment system, delivering high-resolution audio output while optimizing space efficiency, particularly in compact environments. With audiophile-grade sound and a full suite of custom installation features, this receiver is made for the discerning Hi-Fi consumer with a professionally-configured system.

Experience high resolution audio playback thanks to AKM’s premium 32bit/768kHz stereo DAC (AK4452). Capable of supporting wide range signals and at low power consumption, this DAC achieves the industry’s best low distortion characteristics.

Our symmetrical Class G amplifier ensures an efficient, accurate reproduction of audio signals across the entire frequency range. With our low negative feedback (NFB) design, this amp achieves greater transparency and musicality by minimizing distortion and interference for a more natural, dynamic listening experience.

Offering superior conductivity and corrosion resistance, the DTM-7.4’s gold-plated speaker terminals and RCA inputs ensure optimal signal transfer with minimal signal degradation for cleaner, more stable audio connections.

Custom transformer and low-impedance capacitors deliver unparalleled dynamism and lifelike sound reproduction, ensuring natural note transitions so nuances in attack, decay, sustain, and release are voiced with conviction.

Simplify your setup with HDMI ARC technology that uses a single cable for both audio playback and device control.

This robust power output provides room-filling sound with ample headroom for dynamic playback and immersive listening experiences.

AUDIO 110W/ch x 2ch (8Ω, 20-20kHz, 0.08% THD)
Frequency response 5Hz - 100kHz (+1/-3dB Direct Mode)
Speaker impedance: 4-16 ohms
Tone control Bass(100Hz) & Treble (10KHz): +/- 10dB
768KHz/32bits D/A converter - AK4452
INPUTS/
OUTPUTS
Dedicated MM/MC Phono Circuit Board
HDMI 4in / 1out – all supports 8K up to 40Gbps, and ARC
Audio input: 3 Analog, 2 Optical, 1 Coaxial, Phono inputs, and
Front/Rear USB
Audio output: Main and subwoofer pre-out,
Zone2 Pre/lineout
Wifi and Ethernet
AM/FM Tuner
Gold plated speaker terminals
NETWORK Roon Ready certified
Chromecast built-in for audio, and AirPlay2
Music services: Spotify, Amazon Music HD, Tidal, Deezer,
Pandora and TuneIn radio
Bluetooth receiver from mobiles and PC (SBC/AAC)
CONTROL
AND
SERVICE
Web setup, download configuration files via browser
Front ping button (“Display” key) to see the IP address
IP control, RS232, IR in/out, and 12v triggers
Control and remote diagnostic (C4, Crestron, OvrC,
Domotz)
Compatible with OVRC Pro, Domotz, Luxul Pro Watch,
VPN, and other monitoring platforms
Onboard diagnostics tool kit, including test patterns and
EDID/HDCP adjustment, virtual remote; all available via
web app
Integra’s most robust API ever, with discrete
commands for virtually any AVR function
Custom control drivers based on Integrator feedback.
Developed and maintained by Integra’s software team in
Osaka, Japan
RACK KIT Optional Rack-Mount Kit Available (IRK-155-3D)
DIMENSIONS 17 1/8˝ x 5 7/8˝ x 12 15/16˝ (435 x 149 x 328 mm)
WEIGHT 19.8lbs (9.0kg)
POWER
CONSUMPTION 275W, 35W at idle, < 2W at standby
